Engineered for critical fluid management, diagnostic catheters, and surgical applications. Assembled in Class 10,000 cleanrooms under strict ISO 13485 protocols.
Medical tubing forms the critical vascular infrastructure of modern clinical technology. From life-sustaining hemodialysis blood lines and micro-invasive diagnostic catheters to precision fluidic pathways in peristaltic infusion pumps, selecting the optimal polymer matrix and manufacturing vendor directly impacts patient safety, fluidic accuracy, and global regulatory compliance.
Medical grade tubing requires strict adherence to ISO 10993 standards (Biological Evaluation of Medical Devices) and USP Class VI certification. Modern formulations emphasize non-leachable, peroxide-free, and phthalate-free materials to minimize extractables and prevent cytotoxic immune responses.

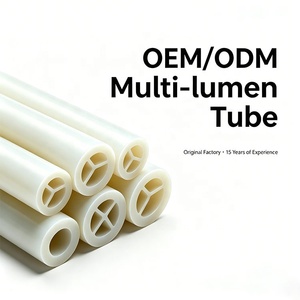

Advanced micro-bore extrusion technology enables wall thicknesses down to 0.038 mm (0.0015") with dimensional tolerances held within ±0.005 mm. Multi-lumen geometry allows simultaneous drug delivery, sensor routing, and balloon inflation within single sub-millimeter catheter shafts.
Sub-assemblies must maintain structural memory and burst pressure rating post-sterilization. Materials are custom-engineered to withstand repeat cycles of Ethylene Oxide (ETO), Gamma Irradiation (up to 50 kGy), Autoclaving (121°C–134°C), or Electron-Beam (E-Beam) processing.
| Material Type | Hardness Range | Temperature Range | Chemical Inertness | Flex Life / Fatigue | Primary Clinical Applications |
|---|---|---|---|---|---|

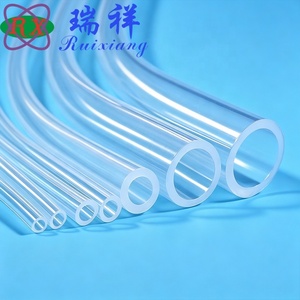

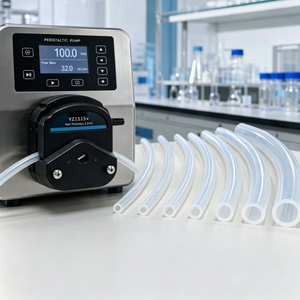

| Platinum Silicone | 30A - 80A Shore | -60°C to +230°C | High (Bio-inert) | Superior (>1,000 hrs) | Peristaltic Pumps, Dialysis Lines, Drainage Catheters |

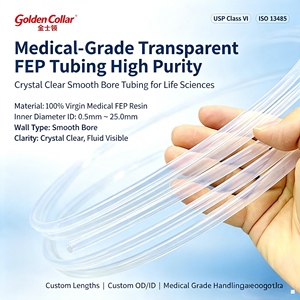

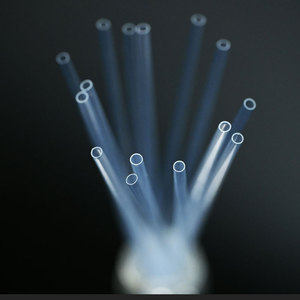

| FEP (Fluorinated Ethylene) | 55D - 65D Shore | -200°C to +204°C | Universal (pH 0-14) | Moderate | Heat Shrink Encapsulation, IV Line Fluidics, Lab Diagnostic |

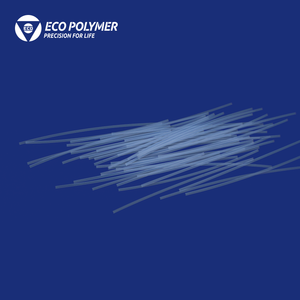

| PTFE (Polytetrafluoroethylene) | 50D - 65D Shore | -240°C to +260°C | Extreme / Inert | High (Low Friction) | Neurovascular Sheaths, Endoscopic Liners, Micro-Catheters |
| Medical TPU (Polyurethane) | 70A - 75D Shore | -40°C to +90°C | Moderate to High | Excellent Wear | Central Venous Catheters, High-Pressure IV Extension |

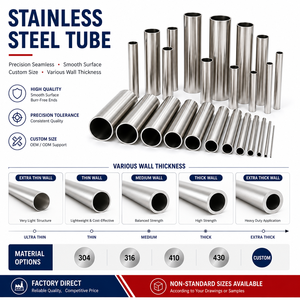

| SS 316L / 304 Micro-Tubes | Full Hard / Annealed | -270°C to +400°C | Corrosion Resistant | Rigid / Non-Flexible | Hypodermic Needles, Surgical Endeffectors, Biopsy Shafts |
Headquartered in Ahmedabad, India, Angiplast Private Limited has provided contract manufacturing, CDMO, and international export services since 1994, serving clients in over 52 countries.
Our state-of-the-art manufacturing campus operates controlled injection molding zones alongside a validated Class 10,000 (ISO Class 7) Cleanroom. We eliminate contamination risks during polymer extrusion, tipping, punching, bonding, and primary pouch sealing.
Unlike suppliers that outsource terminal sterilization, our facility features a captive Ethylene Oxide (ETO) sterilizer plant. Every production lot undergoes rigorous bioburden testing, residual EO/ECH clearance verification, and sterility validation per ISO 11135 guidelines.
Navigating international market clearance requires exhaustive documentation. We empower hospital buyers, tender bidders, and OEM partners with complete regulatory file support:
Over 80% of our annual production is exported across Europe, Latin America, the Middle East, Africa, and Asia-Pacific. We offer full contract manufacturing flexibility:
Analysis of technological disruptions, material phase-outs, and regulatory shifts shaping the global supply chain over the next decade.
Global regulatory frameworks, particularly EU MDR Annex I, are rapidly restricting legacy plasticizers like DEHP and phthalates due to endocrine-disrupting concerns. Procurement departments are actively migrating to TOTM plasticized PVC, Thermoplastic Polyurethanes (TPU), and bio-based liquid silicone rubbers (LSR) to comply with upcoming environmental and patient safety mandates.
As minimally invasive surgical techniques (MIS) expand globally, catheter design demands smaller outer diameters combined with complex internal profiles. Multi-lumen tubing—incorporating radiopaque stripes for X-ray fluoroscopy placement—is becoming standard in cardiology, neurology, and targeted oncology drug delivery systems.
Post-pandemic supply chain vulnerabilities have forced original equipment manufacturers (OEMs) away from transactional spot buying. Preferred sourcing now centers on vertically integrated Contract Development & Manufacturing Organizations (CDMOs) capable of offering tooling development, cleanroom extrusion, ETO sterilization, and regulatory registration under one roof.
Essential guidance for medical device buyers, regulatory managers, and OEM project leads.
Whether you require high-volume standard peristaltic pump hoses, micro-bore FEP/PTFE catheter shafts, or complete OEM private-label assembly, our engineering team is ready to assist.
